Description
Pharmaceuticals and Drugs Inspection
The NIRLIGHT significantly speeds up incoming goods and quality inspections in the pharmaceutical and chemical industry. The handheld NIR spectrometer eliminates the need for sample transport to the laboratory.
Polymer and Plastic Identification
The portable near-infrared analyzer enables plastic recycling, plastic sorting and waste management organizations to identify all kinds of polymer (PP, PE, PET, PA6 vs PA66, LDPE, HDPE, PVC, ABS, etc.) and various sample types such as granulates, flakes, finished parts, and more on-site within seconds.
Narcotics & Explosives Detection
Our handheld NIR spectrometer is designed to not only identify, but also quantify illicit substances and explosives on-site. The NIRLIGHT is an easy-to-use and safe solution for law enforcement, drug checking services and harm reduction organizations.
Food & Livestock Analysis
Ergonomic and robust handheld NIR device for the prediction of the composition of different components in food and livestock as protein, fat, moisture content, minerals, and more.
Feed & Agricultural Products Inspection
Instead of delivering the sample to the laboratory, we bring the mobile lab to the sample in the field and enable fast on-the-spot nutritional analysis of (aqua)feed.
Bluetooth and USB connectivity to smartphone and tablet
Rapid and real-time near-infrared analysis anywhere
Point-and-Click solution with multi-function button for intuitive usage
Non-destructive material analysis with near-infrared spectroscopy

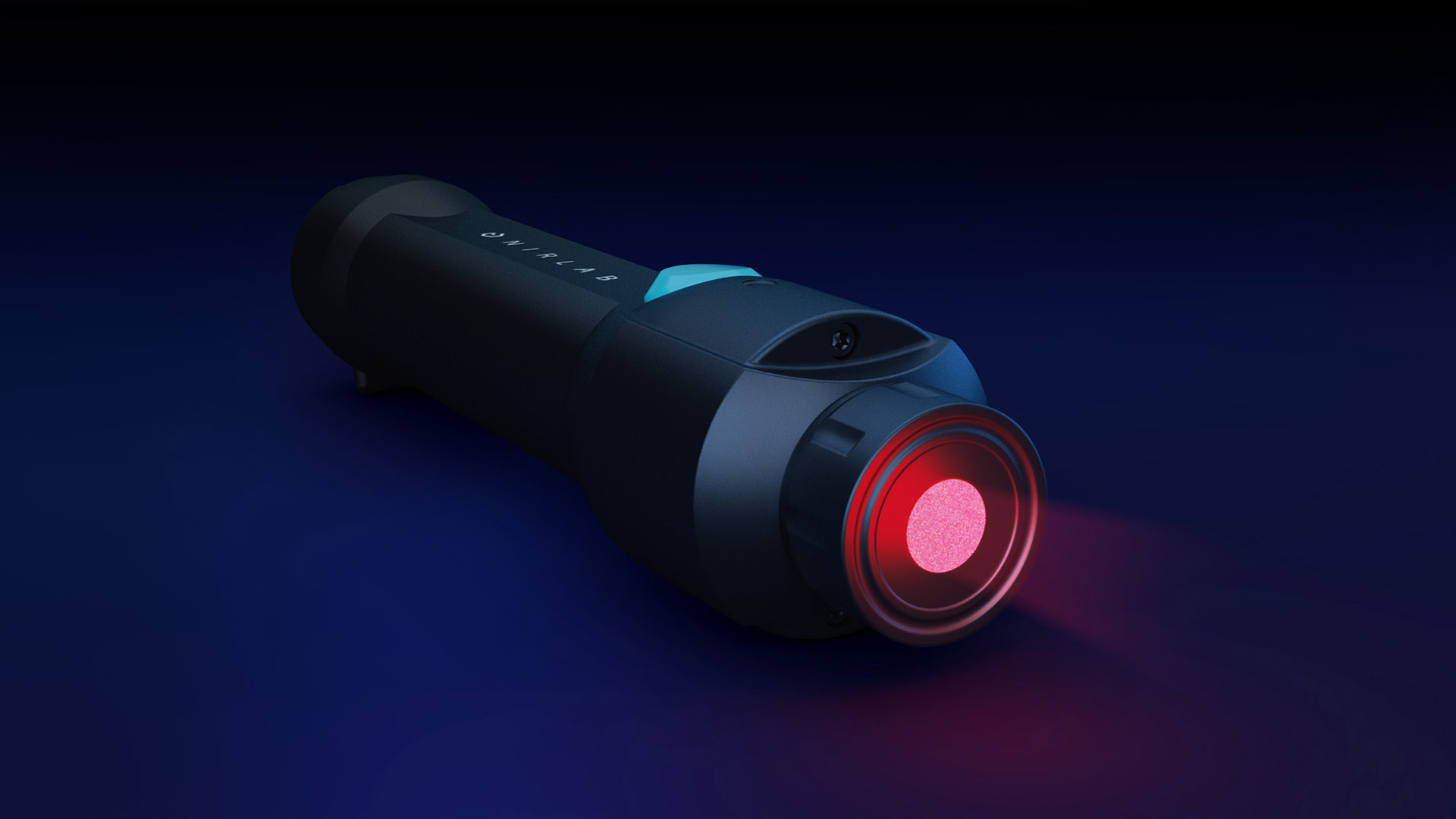

NIRLIGHT – Next Generation of Ultra-Compact Near-Infrared
Spectrometer Sensors
The Specifications
Parameter |
Specification |
|---|---|
| Illumination source | Two integrated vacuum tungsten lamps |
| Lamp life | 40,000 hr |
| Sample working distance | 3 mm from window optimal, 0-15 mm |
| Dispersing element | VIAVI linear variable filter (LVF) |
| Detector | 128 pixel lnGaAs photodiode Array |
| Wavelength range | 950 – 1650 nm (10,526 – 6060 cm-1) |
| Pixel-to-pixel interval | 6.2 nm for 950 – 1650 nm |
| Spectral bandwidth (FWHM) | <l.25% of center wavelength, 1% typical |
| Analog-to-digital convertor | 16 bit |
| Dynamic range (Max) | 1000:1 |
| Measurement time (typical) | 0.25 – 0.5 sec |
| Signal-to-noise ratio (typ.) | 25,000 |
| Integration time | 10 ms typical, minimum 10 μsec |
| Connectivity | Bluetooth 4.1 (BLE) and USB 2.0 |
| Weight | <250 g (<9 oz) |
| Size (Length x Diameter) | 194 mm (6.64′) x 47 mm (1.85′) |
| Battery | Rechargeable Li-ion, not removable |
| Battery run time/charge | 10 hours with lamps on continuously |
| Battery cycle life | 75% capacity after 300 charge cycles |
| Battery charge time | 3.5 hours at 1 A |
| Operating temperature | -20 – 40°( (noncondensing) |
| Storage temperature | -20 – 50°( (noncondensing) |
| Dust and water resistance | IP65 and IP67 |
| Shock and vibration | MIL-PRF-28800F Class 2 |

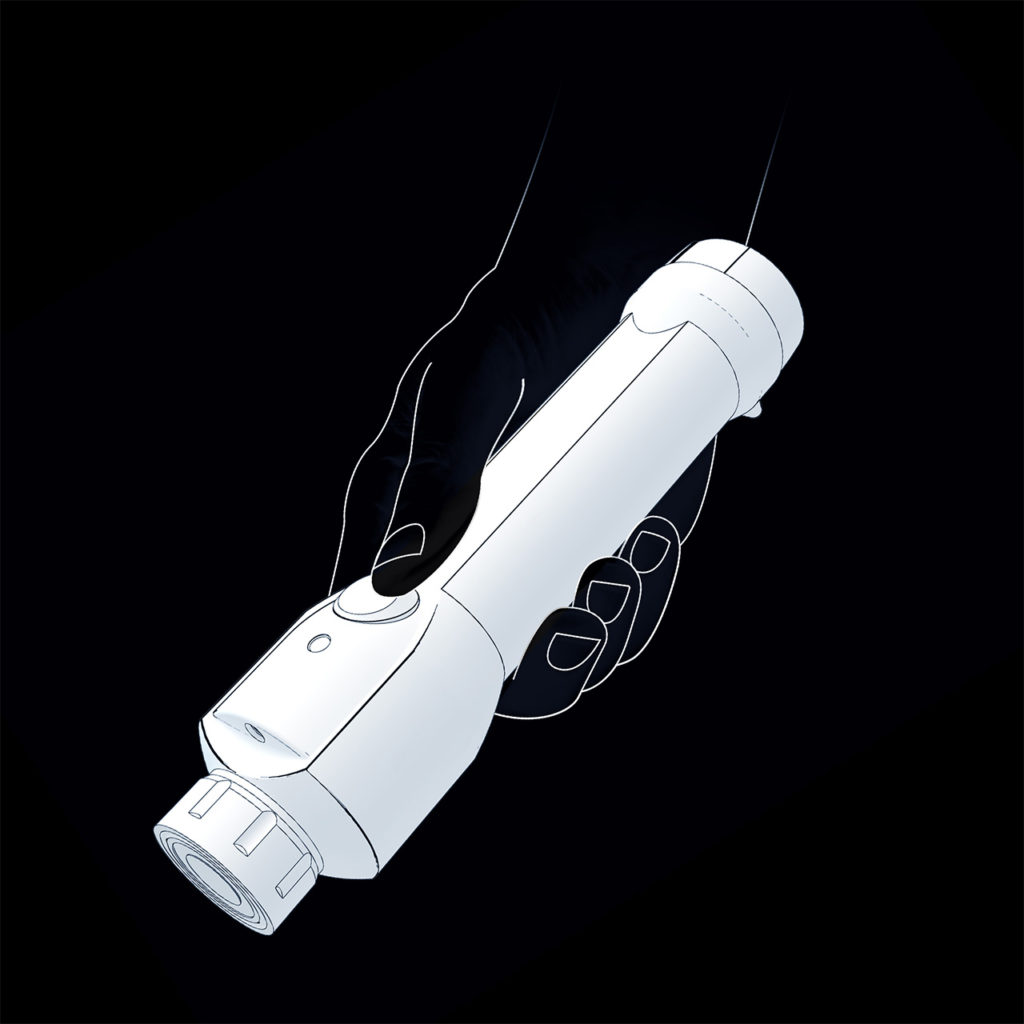

Small size
Simple
Handling
Length: 20 cm
Diameter: 5,5 cm
All
Accesories which can be ordered on demand
| MicroNIR / NIRLIGHT Transmission Fixture |
| 99% 1.25″ Diffuse Reflectance Standard |
| 50% 1.25″ Diffuse Reflectance Standard |
| 10% 1.25″ Diffuse Reflectance Standard |
| White Reference Panel |
| Windowed collar, Small |
| Windowed collar, Large |
| PAT Windowless collar, small |
| Windowless collar, large |
| Dark/White Reference Panel |
| Tablet Probe |
| Side View Vial Holder |
| Droplet Sampler |
| Shaker |
| Mini Probe |
| Side View Vial Spinner (40°C) |
| Side View Vial Spinner (70°C) |
| Vial Clear Glass PE Cap 100/Pack |
| 1 meter USB Ruggedized / Waterproof Straight Mini-B |
| 2 meters USB Ruggedized / Waterproof Straight Mini-B |
| 1 meter USB Reversible Micro USB to Straight A Cable |
| Extended Warranty – 1 Year |
| Extended Warranty – 2 Year |
| Extended Warranty – 3 Year |
Frequently Asked Questions (FAQs)
The NIRLIGHT is a battery-powered handheld near-infrared analyzer that connects wirelessly to smartphones, tablets and PC. Its compact, ruggedized and ergonomic design makes it ideal for applications in the field, in laboratory and manufacturing sites. The point-and-click instrument with no moving parts and IP65/IP67 dust and water ingress rating is the perfect solution for a wide range of material characterization applications in pharma, agriculture, food and feed, and security markets.
The NIRLIGHT’s name hints at its core technology: Near Infrared (NIR) spectroscopy. This method, a staple in laboratories for generations, has been ingeniously compacted into a portable device. By projecting light with slightly less energy than the visible spectrum onto a sample, the device stimulates molecular vibrations. The energy reflected from the material is then captured and analyzed, revealing insights into its structural composition.
NIRLAB’s handheld device uses NIR spectroscopy technology and advanced machine learning to analyze the chemical composition of a substance. By pointing the device at the sample and pressing a button, the device identifies and quantifies the substance within seconds, providing results directly on a connected mobile app.
Yes, our mobile NIR solution is specifically designed for simplicity and ease of use in field conditions. You do not need to be an NIR spectroscopy expert or chemist to analyze substances. No special training or expertise is required to operate our intuitive handheld analyzer.
Yes, the NIRLIGHT analyzer comes with a mobile application displaying scanning results in real-time. Our web application features user and device management, scanning history and data storage, statistics and reporting, and more.
